Seat Belts:

Retrofit Retractable w/Pushbutton Buckle

Retractable lap belt or retractable lap belt with an attached shoulder harness strap that have been specifically designed to retrofit in to most vehicles prior to seat belts being factory or dealer installed.The retrofit seat belts listed can also be used to upgrade from a non-retractable seat belt to a retractable one.

Manufactured and configured so that the shoulder harness end anchor plate attaches to the rear of the floor retractor which is bolted to an L-bracket which avoids the drilling of an interior trim panel and/or an additional floor mountng hole. The retractors are compact and require only 3" of clearance.

The retractable lap belt utilizes a locking type retractor which locks in place once pulled to the required position and the retractable type used on the lap belt with shoulder harness is web sensitive which allows for movement within the vehicle but locks automatically based on pre-designed tension.All of the plastic pieces including the retractor cover,buckle,buckle end cover and shoulder harness sash guide cover are color matched to the webbing color except for on the red belts,where these pieces are black.Matching non-retractable lap belts are also listed for use in a center or rear seat position.

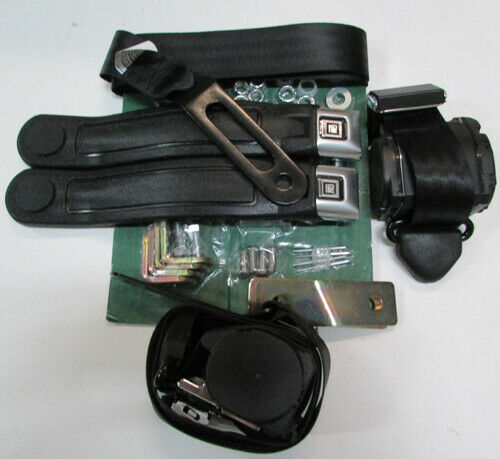

Retrofit mounting kits including the required lower underbody and/or shoulder harness reinforcements plates,L-brackets, attachment bolts and/or shoulder harness shoulder bolts to install 2 seat belts are available when the installation is in a vehicle that did not have belts previously installed. Also available are standard mounting kits that include bolts,washers,nuts and one L-bracket to install one seat belt.

To Order:

Call:410-381-6700 8-5 EST Monday-Friday

or use the simple secure Retrofit On-Line Order Form.

Webbing Color Samples:

Are available for .50 per sample and can be ordered On-Line or by calling (410)381-6700 and by mail.When ordering by phone or mail please supply seat belt part number.Mail in orders should include payment and a self addressed postage paid envelope.
Mail To:
Andover Automotive,Inc
P.O. Box 2651WS
Columbia,Maryland 21045

The shoulder harness mounting anchor brackets are available with either a 2 1/2" or 8 1/2" bracket offset.The offset selected should be based on the distance between the harness mounting point and the seated occupant.

In most cases,when installing a retrofit seat belt the length and style of the buckle end that is include in the bucket or bench seat set listed will be correctly sized for the application with the bucket seat set including a 12" buckle end with a hard plastic sleeve and the bench seat set including a 18" non-sleeved buckle end.

For rear seats and in the event a different length or style buckle end is required a retractable lap belt and a retractable lap belt with an attached shoulder harness with a 2 1/2" offset are listed that do not include a buckle end and require a selection of the buckle end style and length to complete the seat belt set.

Retrofit seat belts may not be applicable to all applications.Refer to the How To Install section to see how and where they are designed to mount.Due to color variations webbing colors are not guaranteed to match original interior colors.For assistance call (410)381-6700.Actual invoice may reflect a different part number.

Retrofit Secure On-Line Order Form.

Column-Description                                                       Price
A-Bucket Seat Retractable Lap Belt Set                                  $35.00ea
B-Bench Seat Retractable Lap Belt Set                                   $35.00ea
C-Bucket Seat Retractable Lap w/Shoulder Harness Set,8 1/2" Offset      $65.00ea
D-Bench Seat Retractable Lap w/Shoulder Harness Set,8 1/2" Offset       $65.00ea
E-Bucket Seat Retractable Lap w/Shoulder Harness Set,2 1/2" Offset      $65.00ea
F-Bench Seat Retractable Lap w/Shoulder Harness Set,2 1/2" Offset       $65.00ea
G-Retractable Lap Retractor Select Buckle End From Below                $30.00ea
H-Retractable Lap w/Shoulder Select Buckle End From Below               $60.00ea
See Mounting Hardware And Related Below


Color                  A       B       C       D       E       F       G       H
Black                WS02B   WS04B   WS03B   WS05B   WS06B   WS07B   WS24B   WS26B
Medium Blue          WS02C   WS04C   WS03C   WS05C   WS06C   WS07C   WS24C   WS26C
Burgundy/Maroon      WS02D   WS04D   WS03D   WS05D   WS06D   WS07D   WS24D   WS26D
Medium Gray          WS02E   WS04E   WS03E   WS05E   WS06E   WS07E   WS24E   WS26E
Tan                  WS02F   WS04F   WS03F   WS05F   WS06F   WS07F   WS24F   WS26F
Bright Red           WS02G   WS04G   WS03G   WS05G   WS06G   WS07G   WS24G   WS26G

Buckle Ends,Select To Complete WS24 And WS26 Set

The 9" buckle end is only available in black.The buckle ends listed and should not be used to complete or replace a component on a set other than those listed.

Column-Description                                         Price
A-9" Buckle End w/Removable Hard Plastic Sleeve         $12.00ea
B-12" Buckle End w/Removable Hard Plastic Sleeve        $15.00ea
C-18" Buckle End,Non-Sleeved                            $10.00ea
D-25" Buckle End,Non-Sleeved                            $12.00ea
E-33" Buckle End,Non-Sleeved                            $14.00ea

Color                  A        B        C        D        E
Black                WS95B    WS99B    WS98B    WS96B    WS97B
Medium Blue          WS95B    WS99C    WS98C    WS96C    WS97C
Burgundy/Maroon      WS95B    WS99D    WS98D    WS96D    WS97D
Medium Gray          WS95B    WS99E    WS98E    WS96E    WS97E
Tan                  WS95B    WS99F    WS98F    WS96F    WS97F
Bright Red           WS95B    WS99B    WS98G    WS96G    WS97G

Non-retractable lap belt that matches the webbing color and buckle style that is used on the retrofit seat belts listed above that can be used in the front center or in a rear seat position.The non-retractable seat belts listed are available in overall lengths of 60",74",and 90".The plastic pieces are color coded to the webbing color except for the red where these pieces are black.Required one WSMH2 bolt kit per belt.

Description                          Price
60" Lap Belt                      $18.00ea
74" Lap Belt                      $19.00ea
90" Lap Belt                      $21.00ea
See Mounting Hardware And Related Below


Color                       60"         74"         90"
Black                      WS01B       WS00B       WS20B
Medium Blue                WS01C       WS00C       WS20C
Burgundy/Maroon            WS01D       WS00D       WS20D
Medium Gray                WS01E       WS00E       WS20E
Tan                        WS01F       WS00F       WS20F
Bright Red                 WS01G       WS00G       WS20G


Mounting Hardware And Related
Description                                                                  Part Number       Price
Standard Mounting Kit For Retractable Lap Belt.Per Belt.                       WS200R         $3.00ea
Standard Mounting Kit For Retractable Lap Belt w/Harness.Per Belt.             WS300R         $5.00ea
Standard Bolt Kit For Non-Retractable Lap Belt.Per Belt.                       WSMH2          $2.50ea
Retrofit Mounting Kit For Retractable Lap Belt.Does 2 Belts.                   WS122         $55.00kt
Retrofit Mounting Kit For Retractable Lap Belt w/Harness.Does 2 Belts.         WS125         $85.00kt
Retrofit Rear Seat Mounting Kit.Per Belt.(2 kits required for 3 belts)         WS124         $25.00kt
Underbody Reinforcement Plate.Pair.Also Included In Retrofit Mounting Kits.    WSRB1         $25.00pr
L-Bracket.Also Include In Retrofit Mounting Kits.                              WSRB2          $2.50ea
Shoulder Harness Reinforcement Plate.Also Included In Retrofit Mounting Kits.  WSRB3         $12.00ea

All information detailed within this document is based on information believed to be accurate but accuracy is not guaranteed.All pictures,diagrams and item descriptions are protected property of The Andover Companies,Inc and are not to be duplicated in any manner without written permission.
