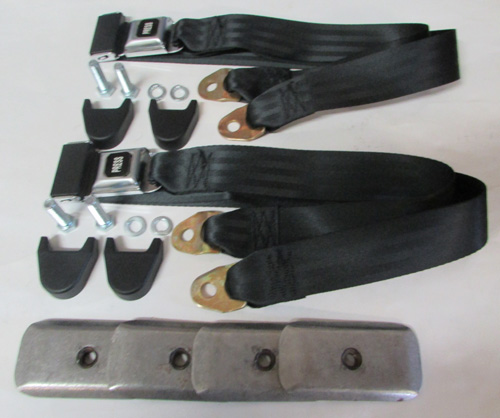

Non-Retractable Lap Seat Belt

Quantity
Add Mounting Kit $2.50ea
Add L-Bracket $2.50ea
Add Mounting Kit For The L-Bracket $1.25ea

Product Notes:
  • The buckle is black regardless of the webbing color.
  • All plastic pieces are black regardless of webbing color.
  • Lengths listed are approximate.
  • A L-bracket may be required for mounting based on mounting location.
  • The invoice may show different product numbers.



    • Retractable Lap And Shoulder Harness Seat Belt Choices

    General Information
  • The belts listed can be used for a drivers or passenger side installation and are sold each/per person.
  • The retractors utilized are emergency locking(ELR) type which have an inertia reel which is web sensitive locking the retractor instantly on a sudden movement of the webbing.
  • Always use factory mounting point when possible.
  • The installation of a seat belt with a door post extension requires a reinforced shoulder harness attachement point. If the vehicle was not factory equiped with shoulder harness click Here to see how to retrofit an attachement point.
  • The seat belts listed are universal fit with no electrical wiring and are not guaranteed to fit all applications or to match any interior color.
  • All measurements listed are approximate.

    Buckle End Selection
  • A buckle end with a plastic sleeve is used in a vehicle with bucket seats to hold the buckle end upright.
  • A buckle end without a plastic sleeve is used in a vehicle with bench type seat so it slides between the seat back and bottom.

    Length Selection
  • 110" is the most common fully extended length when the seat belt being installed when the harness mounting bracket is located below the window or the vehicle does not have a door post above the lower part of the window.
  • 140" is the most common fully extended length when the seat belt being installed when the harness mounting bracket is located on the roof or above the window on a door post.


    Retractable Lap With Shoulder Harness
    With Non-Sleeved Buckle End

    Available Fully Extended Lenghts:
  • 85" Long: 5" Of Webbing Outside Of Retractor When Fully Retracted.
  • 110" Long: 30" Of Webbing Outside Of Retractor When Fully Retracted.
  • 125" Long: 45" Of Webbing Outside Of Retractor When Fully Retracted.
  • 140" Long: 60" Of Webbing Outside Of Retractor When Fully Retracted.
    Quantity


    Add Color Matched Retractor,Latch And HArness Bracket Cover $10.00ea
    Add Mounting Kit With L-Bracket And Shoulder Bolt $5.25ea
    Add Additional L-Bracket For Buckle End $2.50ea
    Add Mounting Kit For The Additional L-Bracket $1.25ea

    Product Notes:
  • The buckle is black regardless of the webbing color.
  • **Indicated that color matched retractor,latch and harness bracket covers are available.
  • Unless selected all plastic pieces are black regardless of webbing color.
  • A L-bracket may be required for buckle end mounting based on mounting location.
  • The invoice may show different product numbers.




    		•

    Retractable Lap With Shoulder Harness
    With Sleeved Buckle End

    Available Fully Extended Lenghts:
  • 85" Long: 5" Of Webbing Outside Of Retractor When Fully Retracted.
  • 110" Long: 30" Of Webbing Outside Of Retractor When Fully Retracted.
  • 125" Long: 45" Of Webbing Outside Of Retractor When Fully Retracted.
  • 140" Long: 60" Of Webbing Outside Of Retractor When Fully Retracted.
    Quantity


    Add Color Matched Retractor,Latch And HArness Bracket Cover $10.00ea
    Add Mounting Kit With L-Bracket And Shoulder Bolt $5.25ea
    Add Additional L-Bracket For Buckle End $2.50ea
    Add Mounting Kit For The Additional L-Bracket $1.25ea

    Product Notes:
  • The buckle is black regardless of the webbing color.
  • **Indicated that color matched retractor,latch and harness bracket covers are available.
  • Unless selected all plastic pieces are black regardless of webbing color.
  • A L-bracket may be required for buckle end mounting based on mounting location.
  • The invoice may show different product numbers.



    • Mounting Brackets

    Quantity:
    Mounting Kit If Belt Mounting Kit Was Purchased $1.25ea
    Mounting Kit If Belt Mounting Kit Was Not Purchased $2.50ea

    Product Notes:
  • RB6:1 1/2" long L-bracket.
  • RB2:2" long L-bracket.
  • RB9:5" long double angle bracket.
  • RB8-L:7" long angle bracket.Angles to the left.
  • RB8-R:7" long angle bracket.Angles to the right.
  • RB7:3" long flat extension.
  • RB11:6" long flat extension.
  • RB10:12" long angle bracket.

    • Reinforcement Plates

    Quantity:
    Add Mounting Bolt $1.00ea

    Product Notes:
  • RB1-1: Curved steel with attached nut.Measures 4 1/2" x 3".
  • RB3: Steel with attached nut.Measures 4 1/2"(not including tip) x 1 1/2".
  • RB4: Measures 3" x 1 1/2" and accepts a 7/16th fine thread bolt.


    • (SBL12 3-14-10)
