Push button buckle seat belts with starburst/sunburst design on the press area available as a non retractable lap seat belt, non retractable retrofit lap belt set, retractable lap seat belt and retractable lap seat belt with shoulder harness for most makes and models of cars and trucks manufactured or assembled in the USA with USA certification tag confirming compliance with current FMVSS(Federal Motor Vehicle Safety Standards) 209 and 302. The seat belts listed are universal fit and not implied to be vehicle or application specific.

Additional Buckle Choices.

Non Retractable Seat Belts

Lap Seat Belt

Quantity:
Quantity:

Quantity:
Quantity:

Product Notes: Click On Picture To Enlarge.
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • Anchor End Fitting: Yellow zinc with 35 degree bend and 1/2" mounting bolt hole.
  • Buckle: Metal.Measures 1 7/8" x 2" not including webbing slot.
  • Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • CR1 Retractor w/Install Instructions: Clip-on. Black plastic. Measures 3" x 2 1/2".
  • 80296 Retractor w/Install Instructions: Clip-on. Chrome Roll-A-Belt style.
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • For product questions or ordering assistance call (302)629-8508.

    Mounting Kits
  • MH2 Standard Mounting Kit includes yellow zinc bolts, washers, nuts and and oversize underbody reinforcing washers.
  • MH4 Standard Mounting Kit includes zinc chromate bolts, washers, nuts and and oversize underbody reinforcing washers.
  • 201K Retrofit Mounting Kit includes zinc chromate bolts, washers and threaded underbody reinforcing plates to add support to the mounting points which should be used when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.




    		•

    Non Retractable Retrofit Lap Belt Set

    Set includes seat belts and standard retrofit mounting kit for 2 persons/positions. A standard retrofit mounting kit includes mounting hardware plus threaded underbody reinforcing plates to add support to the mounting points which should be used when installing seat belts in a location they were not previously dealer or factory installed. When adding an additional seat belt for a center/middle sitting position additional mounting hardware is not required.
    Quantity:

    Quantity:
    Quantity:

    Quantity:
    Quantity:

    Product Notes: Click On Picture To Enlarge
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • Anchor End Fitting: Yellow zinc with 35 degree bend and 1/2" bolt hole.
  • Buckle: Metal.Measures 1 7/8" x 2" not including webbing slot.
  • Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • CR1 Retractor w/Install Instructions: Clip-on. Black plastic. Measures 3" x 2 1/2".
  • 80296 Retractor w/Install Instructions: Clip-on. Chrome Roll-A-Belt style.
  • For product questions or ordering assistance call (302)629-8508.

    Rear Seat Mounting Kits
  • MH2 Standard Mounting Kit includes yellow zinc bolts, washers, nuts and oversize underbody reinforcing washers.
  • MH4 Standard Mounting Kit includes zinc chromate bolts, washers, nuts and oversize underbody reinforcing washers.
  • 201K Retrofit Mounting Kit includes zinc chromate bolts, washers and threaded underbody reinforcing plates to add support to the mounting points which should be used when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.




    		•

    Deluxe Retrofit Lap Belt Set

    Set includes seat belts and deluxe retrofit mounting kit for 2 persons/positions. A deluxe retrofit mounting kit includes zinc chromate mounting bolts, bolt head and end fitting covers and factory style curved steel underbody reinforcing plates with weldnut which should be used to add support to the mounting points when installing seat belts in a location they were not previously dealer or factory installed. When adding an additional seat belt for a center/middle sitting position additional mounting hardware is not required.
    Quantity:

    Quantity:
    Quantity:

    Quantity:
    Quantity:

    Product Notes: Click On Picture To Enlarge
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • Anchor End Fitting: Yellow zinc with 35 degree bend and 1/2" bolt hole.
  • Buckle: Metal.Measures 1 7/8" x 2" L not including webbing slot.
  • Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • CR1 Retractor w/Install Instructions: Clip-on. Black plastic. Measures 3" x 2 1/2".
  • 80296 Retractor w/Install Instructions: Clip-on. Chrome Roll-A-Belt style.
  • For product questions or ordering assistance call (302)629-8508.

    Rear Seat Mounting Kits
  • MH2 Standard Mounting Kit includes yellow zinc bolts, washers, nuts and oversize underbody reinforcing washers.
  • MH4 Standard Mounting Kit includes zinc chromate bolts, washers, nuts and oversize underbody reinforcing washers.
  • 201K Retrofit Mounting Kit includes zinc chromate bolts, washers and threaded underbody reinforcing plates to add support to the mounting points which should be used when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.

    • Retractable Seat Belts

    Lap Seat Belt

    Quantity:
    Quantity:

    Quantity:
    Quantity:

    Quantity:

    Product Notes: Click On Picture To Enlarge
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • For driver or passenger side installation.
  • Buckle: Metal. Measures 1 7/8" x 2" not including webbing slot.
  • Buckle Side, Bench Seat: 20" long non sleeved. Not ajustable.
  • Buckle Side, Bucket Seat: 12" long with molded plastic sleeve.
  • Retractor Boot Length: 7"
  • Retractor Type: Automatic locking. Locks once webbing pulled and released.
  • Retractor Webbing Length: 52" when fully extended.
  • Rear Lap Belt Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • rear Lap Belt Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • For product questions or ordering assistance call (302)629-8508.

    Mounting Kits
    A retrofit mounting kit includes threaded underbody reinforcing plates to add support to the mounting points which should be used when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.
    For Front Seat
  • 200K Standard Mounting Kit includes bolts, washers, nuts, oversize underbody reinforcing washers plus L-bracket to mount retractor upright.
  • 202K Retrofit Bucket Seat Mounting Kit includes L-bracket for retractor and buckle side, mounting hardware plus threaded underbody reinforcing plates.
  • 204K Retrofit Bench Seat Mounting Kit includes L-bracket for retractor, mounting hardware plus underbody reinforcing plates.
    For Rear Seat
  • MH2 Standard Mounting Kit includes yellow zinc bolts, washers, nuts and oversize underbody reinforcing washers.
  • MH4 Standard Mounting Kit includes zinc chromate bolts, washers, nuts and oversize underbody reinforcing washers.
  • 201K Retrofit Mounting Kit includes zinc chromate bolts, washers and threaded underbody reinforcing plates.

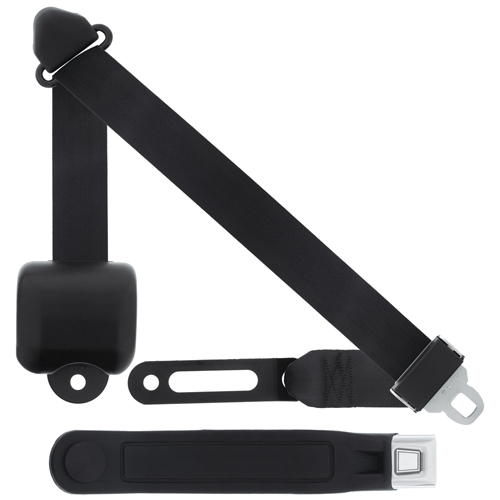

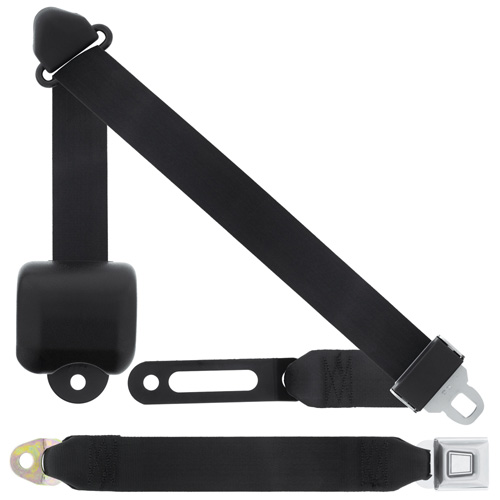

    • 3 Point Lap Belt With Shoulder Harness


    Quantity:
    Quantity:

    Quantity:
    Quantity:

    Quantity:

    Product Notes: Click On Picture To Enlarge
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • For driver or passenger side installation.
  • Buckle: Metal. Measures 1 7/8" x 2" not including webbing slot.
  • Buckle Side, Bench Seat: 20" long. Non sleeved. Not Adjustable.
  • Buckle Side, Bucket Seat: 12" long with plastic molded sleeve..
  • Retractor Cover: Full
  • Retractor Type: Web sensitive emergency locking(ELR). Locks on sudden webbing movement.
  • Retractor Webbing Length: 135" when fully extended.
  • Rear Lap Belt Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Rear Lap belt Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • For product questions or ordering assistance call (302)629-8508.

    Mounting Kits
    A retrofit mounting kit includes reinforcing plates to add support to the mounting points which should be used when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.
    For Front Seat
  • 300K Standard Mounting Kit includes bolts, washers, nuts, oversize reinforcing washers plus L-bracket to mount the retractor upright.
  • 302K Retrofit Bucket Seat Mounting Kit includes bolts, washers, nuts, underbody and shoulder harness mounting reinforcing plates plus L-brackets to mount retractor and buckle side upright.
  • 303K Retrofit Bench Seat Mounting Kit includes bolts, washers, nuts, underbody and shoulder harness mounting reinforcing plates plus L-bracket to mount retractor upright.

    For Rear Seat
  • MH2 Standard Mounting Kit includes yellow zinc bolts, washers, nuts and oversize underbody reinforcing washers.
  • MH4 Standard Mounting Kit includes zinc chromate bolts, washers, nuts and oversize underbody reinforcing washers.
  • 201K Retrofit Mounting Kit includes zinc chromate bolts, washers and threaded underbody reinforcing plates.








    • Rear seat combination retractable lap seat belt with shoulder harness kits utilizing compact ELR web sensitive emergency locking retractors that allow for movement when buckled and will lock on sudden webbing movement designed to mount flat on to a steel reinforced deck panel or package tray under the rear window, raised wheel well, back of a seat or in the trunk area.

    Kit includes combination retractable lap seat belt with shoulder harness for 2 persons/positions with installation instructions. A deck/package tray or trunk mounting kit is required to complete the installatiion. When installing the retractors in the trunk to protect the webbing where the deck/package tray has been cut to allow the webbing and latch end to feed thru a bezel kit is available.

    Quantity:
    Quantity:

    Quantity:

    Quantity:


    Product Notes: Click On Picture To Enlarge
  • See end of page for end fitting/bolt head covers and clip on retractors.
  • Center Seat Belt Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Buckle: Metal. Measures 1 7/8" x 2"L not including webbing slot.
  • Buckle Side: 12" long. Not adjustable.
  • Retractor: Web sensitive with full cover.
  • Retractor Webbing Length: 110" when fully extended.
  • For product questions or ordering assistance call (302)629-8508.

    • Related Items

    Clip On Webbing Retractors

    Quantity:


    Product Notes: Click on picture to enlarge
  • CR1 Retractor w/Install Instructions: Clip-on. Black plastic. Measures 3" x 2 1/2".
  • 80296 Retractor w/Install Instructions: Clip-on. Chrome Roll-A-Belt style.
  • For product questions or ordering assistance please call (302)629-8508.


    • Covers

    Quantity:


    Product Notes: Click on picture to enlarge
  • CVR-BH: Snaps on the hex head bolt, Black.
  • CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.
  • For product questions or ordering assistance please call (302)629-8508.
