OEM style seat belts with an all metal push button buckle that are available as non retractable lap seat belts with or without a shoulder harness or as retractable, lap seat belts with or without a shoulder harness with webbing colors to match most interiors for most makes and models of American and imported automobiles and trucks.
All seat belts and related hardware are new and manufactured to meet or exceed FMVSS (U.S. Federal Motor Vehicle Safety Standards) 209 and 302 with all of the seat belts manufactured or assembled in the USA.
All the seat belts listed are an aftermarket universal fit and are not implied to be vehicle or application specific. No guarantee is made as to fit or if a webbing or component color will match an existing seat belt or interior color.
Click Here for a vehicle specific seat belt, seat belts for non automotive and seatbelts for specialty applications.
|

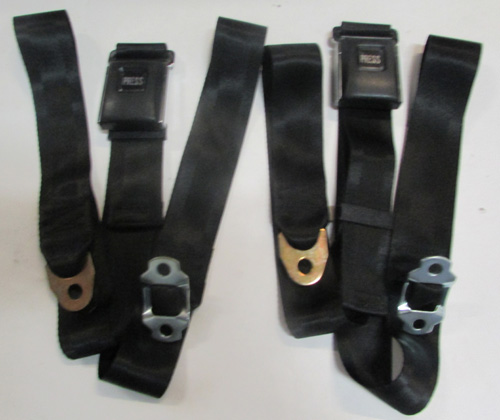

Lap Seat Belt
Product Notes:
Click On Picture To Enlarge
*Indicates all plastic pieces are color matched to the webbing color.
Unless indicated all plastic pieces are black regardless of webbing color.
Length 60":Adjustable side 40". Buckle side 20".
Length 74":Adjustable side 50". Buckle side 24".
Length 90":Adjustable side 45". Buckle side 45".
Lengths listed are approximate.
MH2 mounting kit includes bolts,washers,nuts and oversize reinforcing washers.
Use 201K retrofit kit if seat belts were not previously installed.Includes underbody reinforcement plates and hardware.MH2 mounting kit is not required.
Matching Retractable Belts
For product questions or ordering assistance call (302)629-8508.
|
|
Lap Seat Belt With Sleeved Buckle Side
Product Notes:
Click Picture To Enlarge
*Indicates all plastic pieces are color matched to the webbing color.
Unless indicated all the plastic pieces are black.
Length 60": Adjustable side 48".Buckle side 12" long with sleeve.
Length 74": Adjustable side 62".Buckle side 12" long with sleeve.
The lengths listed are approximate.
MH2 mounting kit includes bolts,washers,nuts and oversize reinforcing washers.
Use 201K retrofit kit if seat belts were not previously installed.Includes underbody reinforcement plates and hardware.MH2 mounting kit is not required.
Matching Retractable Belts
For product questions or ordering assistance call (302)629-8508.
|
|
Lap Seat Belt With Shoulder Harness
Product Notes:
Click On Picture To Enlarge
*After the color indicates the plastic pieces can be ordered color matched to the webbing color.
All plastic pieces are black unless color matched is ordered.
Adjustable on the shoulder harness and lap seat belt positions.
The extended length without the buckle side measures 95" end to end.
Length listed is approximate.
Use 301K retrofit kit if seat belts were not previously installed.Includes shoulder harness and underbody reinforcement plates and hardware.MH9 mounting kit is not required.
Matching Retractable Belts
For product questions or ordering assistance call (302)629-8508.
|
|

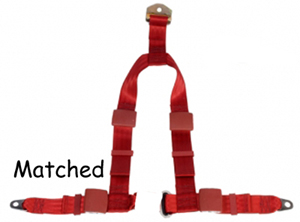

Custom "Y" Harness
Product Notes:
Click On Picture To Enlarge
*After the color indicates the plastic pieces can be ordered color matched to the webbing color.
All plastic pieces are black unless color matched is ordered.
Length adjustment on both the shoulder harness and lap belt.
Harness strap measures 84" from attachment to lap belted.
Adjustable lap belt portion measures 74" long.
Lengths listed are approximate.
Use 305K retrofit kit if seat belts were not previously installed.Includes shoulder harness and underbody reinforcement plates and hardware.MH9 mounting kit is not required.
Matching Retractable Belts
For product questions or ordering assistance call (302)629-8508.
|
|
4-Point Custom Harness
Product Notes:
Click On Picture To Enlarge
*After the color indicates the plastic pieces can be ordered color matched to the webbing color.
All plastic pieces are black unless color matched is ordered.
Adjustable on both lap belt and harness straps and all mountng points.
Each side of the adjustable lap belt measures 38" long.
Each adjustable harness strap measures 77" from where it attaches to the lap belt.
Lengths listed are approximate.
Use 401K retrofit kit if seat belts were not previously installed.Includes shoulder harness and underbody reinforcement plates and bolts.Mounting kit is not required.
Not SFi certified for racing.
Lengths listed are approximate.
Matching Retractable Belts
For product questions or ordering assistance call (302)629-8508.
|
 |
Mounting Brackets
Product Notes:
RB6: 1 1/2" long L-bracket.Yellow Zinc.
RB2: 2" long L-bracket.Yellow Zinc.
RB9: 5" long double angle bracket.Yellow Zinc.
RB8: 7" long angle bracket.Yellow Zinc.
RB7: 3" long flat extension.Yellow Zinc.
RB11: 6" long flat extension.Yellow Zinc.
RB10: 12" long angle bracket.Yellow Zinc.
For product questions or ordering assistance call (302)629-8508.
|
 |
Reinforcement Plates
Product Notes:
RB1-1: Curved steel with attached nut. Measures 4 1/2" x 3".
RB1: Same as RB-1 except pair.
RB3: Steel with attached nut. Measures 4 1/2"(not including tip) x 1 1/2".
RB4: Threaded to accept a 7/16th fine thread bolt. Measures 3" x 1 1/2".
For product questions or ordering assistance call (302)629-8508.
|
 |
Retractors, Clip On Webbing
Product Notes:
CR1: Black plastic retractor measures 3" x 2 1/2".
80296: Chrome 1950-60's style "Roll-A-Belt".
For product questions or ordering assistance call (302)629-8508.
|
