1974, 1975, 1976 And 1977 Corvette Seat Belts
1974, 1975, 1976 and 1977 Chevrolet Corvette coupe and convertible replacement non retractable lap seat belts and retractable lap seat belts with or with out a shoulder harness that are available as a complete car set or as individual components with 3,4 or 7 panel webbing. The seat belt buckle choices include an all metal with a starburst or GM logo on the press area. Also available is a 1974 coupe or convertible retractable lap with shoulder harness kit which includes all mounting hardware required to retrofit a 1974 Corvette to a retractable lap seat belt with shoulder harness without cutting the seat bezels or seat material.
All of the seat belts and related hardware listed are new and manufactured to meet or exceed FMVSS (U.S. Federal Motor Vehicle Safety Standards) 209 and 302 with all seat belts manufactured or assembled in the USA..
Replacement Lap Or Retrofit Retractable Lap With Harness Seat Belts
Lap Seat Belt Product Information(W8126 Series)
Click On Pictures To Enlarge
Sized specifically to fit a Corvette. Has an adjustable side that adjust from 5" to 53" long and a fixed 9" buckle side with sleeve.
Buckle is all metal with starburst design on the press area.
Does not include a provision to add a shoulder harness.
The end fitting have a 1/2" mounting bolt hole.
A color match to existing seat belt, upholstery or carpet is not be guaranteed.
*Prior to the part number indicates all plastic pieces are color matched to webbing color. Unless indicated these pieces are black.
When underbody reinforcing plates need to be replaced order one 201K-Z retrofit mounting kit per seat belt which includes universal underbody reinforcing plates and zinc chromate bolts and lock washers.
Retrofit Retractable Lap With Harness Product Information(W8137 Series)
Click On Picture To Enlarge
Includes seat belts and retrofit mounting hardware for both driver and passenger.
Sized specifically to fit a Corvette. Combination lap with harness with fixed 9" buckle side with sleeve.
Buckle is all metal with starburst design on the press area.
A color match to existing seat belt, upholstery or carpet is not be guaranteed.
*Prior to the part number indicates that all of the plastic pieces are color matched to the webbing color. Unless indicated these pieces are black.
Includes retrofit mounting hardware.
To Order:
Call:(302) 629-8508 8-5 EST Monday-Friday
Or use the secure on-line order form below.
To view webbing colors or to order webbing samples click on the color name.
Color Lap Seat Belt Retrofit Lap With Harness Kit
Black-B W8126B W8137B
Blue,Dark-C *W8126C *W8137C
Brown-M W8126M W8137M
Buckskin/Tan-V W8126V W8137V
Gray-K *W8126K *W8137K
Maroon/Oxblood-P *W8126P *W8137P
Red-N *W8126N *W8137N
Red,Dark-F *W8126F *W8137F
Saddle-L *W8126L *W8137L
Silver-J *W8126J *W8137J
White-S W8126S W8137S
Retrofit Mounting Kit 201K-Z Included
1974 and 1975 Corvette Convertible Car Sets
Product Information
Click On Pictures To Enlarge
See the component section at end of section for latch ends, mounting hardware, shoulder harnesses, sleeves and related items.
Mounts in the original factory configuration and uses the factory mounting points.
Lap belt car sets include 7 panel webbing, color matched web stops, retractable and buckle side for driver and passenger.
Lap belt with shoulder harness car sets add the driver and passengers shoulder harness with color matched web stops.
Car sets are also available with 3 and 4 panel webbing. Refer to the order form below for item numbers.
Buckle side sleeves are not included. When not re-using originals, color matched webbing sleeve sets are available. See order form.
The lap seat belt retractors do not include dash electrical connectors and are automatic locking which lock in place when pulled and released. Shoulder harness retractors are web sensitive emergency locking (ELR) which allow for some movement once attached to the lap seat belt and lock on sudden movement.
Mounting Hardware Information
When replacing or adding underbody reinforcing plates order one 207K per lap belt car set.
When replacing or adding underbody reinforcing plates order one 307K per lap belt with shoulder harness car set.
Retrofit mounting kits include universal underbody reinforcing plates and zinc chromate mounting hardware.
8223 or 8239 mounting kits are not required when ordering 207K or 307K retrofit mounting kits.
If using the factory underbody reinforcing plates order one 8239 replacement mounting kit per lap seat belt car set.
If using the factory underbody reinforcing plates order one 8223 replacement mounting kit per lap seat belt with shoulder harness car set.
To Order:
Call:(302) 629-8508 8-5 EST Monday-Friday
Or use the secure on-line order form below.
The buckle sleeves, web stops or webbing color is not guaranteed to match to existing seat belt, upholstery or carpet.
Click Here to view 4 and 7 panel webbing colors or to order webbing samples.
Lap Belt Car Set With Lap Belt Car Set With Harness With
Color Starburst Logo GM Logo Starburst Logo GM Logo Sleeve Set
Black(B) W8125B W8130B W8127B W8131B 2-W8172B
Blue,Dark(C) W8125C W8130C W8127C W8131C 2-W8172C
Maroon/Oxblood(P) W8125P W8130P W8127P W8131P 2-W8172P
Saddle(L) W8125L W8130L W8127L W8131L 2-W8172L
Silver(J) W8125J W8130J W8127J W8131J 2-W8172J
Mounting Kit 8239 8239 8223 8223 N/A
Retrofit Mounting Kit 207K 207K 307K 307K N/A
1974-77 Corvette Coupe Retractable Lap With Harness Car Sets
1974, 1975, 1976 and 1977 Corvette coupe retractable lap seat belts with attached shoulder harness car sets available with an all metal push button buckle with a starburst or GM logo on the press area and 3,4 and 7 panel webbing. All of the car sets include the lap seat belt with the buckle side and attached shoulder harness for both the driver and passenger. See components at end of section for retractable latch ends, mounting hardware, shoulder harnesses, sleeves and related items.
W8444 Series Specifications
Also available as a partial set. See W8437-110 series.
Click on pictures to enlarge
Buckle is all metal with starburst logo on the press area.
Includes replacement 2" shoulder harness bracket with color matched(when indicated) cover.
Color matched(when indicated) 9" long buckle side hard plastic webbing sleeves are included.
W8443 Series Specifications
Click on pictures to enlarge
Buckle is all metal with starburst logo on the press area.
Includes original style shoulder harness bracket with black webbing. Bracket cover is not included.
Buckle side webbing sleeve is not included. If not re-using originals order 2 W8172 series replacement sleeves per car set.
W8124 Series Specifications
Click on pictures to enlarge
Buckle is all metal with starburst logo on the press area.
Has original dual retractor configuration with original style shoulder harness bracket with black webbing.Bracket cover is not included.
Buckle side webbing sleeve is not included. If not re-using originals order 2 W8172 series replacement sleeves per car set.
W8132 Series Specifications
Click on pictures to enlarge
Buckle is all metal with GM logo on the press area.
Has original dual retractor configuration with original style shoulder harness bracket with black webbing.Bracket cover is not included.
Buckle side webbing sleeve is not included. If not re-using originals order 2 W8172 series replacement sleeves per car set.
Also available with 3 panel (W8149 Series) or 4 panel (W8147 series) webbing. See order form below.
Mounting Hardware Information
When not re-using factory mounting bolts order one 8240 replacement bolt kit per car set.
If underbody reinforcing plates are missing order one 308K retrofit mounting kit per car set which includes universal underbody reinforcing plates and zinc chromate mounting hardware. 8240 mounting kit is not required when ordering.
To Order:
Call:(302) 629-8508 8-5 EST Monday-Friday
Or use the secure on-line order form below.
Buckle sleeves, web stops and webbing color is not guaranteed to match to existing seat belt, upholstery or carpet is not be guaranteed.
Click Here to view 4 and 7 panel webbing colors or to order webbing samples.
*Prior to the part number indicates all pieces are color matched to the webbing color.Unless indicated all plastic pieces are black.
Color Driver/Passenger Only Car Set Car Set Car Set Car Set
Black-B W8437B-110 W8444B W8443B W8124B W8132B
Blue,Dark-C *W8437C-110 *W8444C *W8443C *W8124C *W8132C
Brown,Dark-M W8437M-110 W8444M W8443M W8124M W8132M
Buckskin/Tan-V *W8437V-110 *W8444V W8443V W8124V W8132V
Maroon/Oxblood-P *W8437P-110 *W8444P *W8443P *W8124P *W8132P
Red-F *W8437F-110 *W8444F *W8443F *W8124F *W8132F
Saddle,Medium-L *W8437L-110 *W8444L *W8443L *W8124L *W8132L
Silver-J *W8437J-110 *W8444J *W8443J *W8124J *W8132J
White-S W8437S-110 W8444S W8443S W8124S W8132S
Mounting Kit N/A 8240 8240 8240 8240
Retrofit Mounting Kit N/A 308K 308K 308K 308K
| 1974-77 Coupe Seat Belts |
Price |
Color |
Order |
Components, Mounting Hardware And Related
8002 Series 1974-75 Convertible Retractable Latch End Specifications
Click on picture to enlarge
Includes 3 panel (8002-3P Series),4 panel (8002-4-P Series) or 7 panel (8002 Series) webbing plus color matched web stop.
A web stop or webbing color match to existing seat belt,upholstery or carpet is not be guaranteed.
Does not include the electrical connection for the seat belt dash warning lamp.
Includes chrome latch end with optional shoulder harness attachment stud.
8128 Series 1974-75 Convertible Shoulder Harness Specifications
Click on picture to enlarge
Includes 3 panel (8128-3P Series) or 4 panel (8128-4P Series)webbing.
A webbing color match to existing seat belt,upholstery or carpet is not be guaranteed.
When not re-using original web stop,which was installed after the shoulder harness end was feed thru the seat back, color matched web stop(W8170 series) are available.
Includes chrome end fitting required to attach to the stud on to an original latch end.
8219 Series Convertible Shoulder Harness Specifications
Click on picture to enlarge
Includes 7 panel webbing.
A webbing color match to existing seat belt,upholstery or carpet is not be guaranteed.
When not re-using original web stop,which was installed after the shoulder harness end was feed thru the seat back, color matched web stop(W8170 series) are available.
Includes chrome end fitting required to attach to the stud on to an original latch end.
Mounting Hardware Information
Replacement hardware to be used with factory reinforcement plates.
A car set mounting kit installs both drivers and passenger side seat belts.
When underbody reinforcing plates arer missing retrofit mounting kits which includes universal underbody reinforcing plates and mounting hardware can be used. One per car set.Mounting kits are not required when ordering.
Retractor Information
Bare retractors can be used to replace a damaged original when the webbing is to be re-used.
Bare retractors include a small amount of webbing in order to maintain tension.
Care should be taken when removing and transferring webbing and should be done by a professional.
Webbing, web stop and end chrome are not included.
Bare retractors are sold not returnable.
To Order:
Call:(302) 629-8508 8-5 EST Monday-Friday
Or use the secure on-line order form below.
A buckle sleeve,web stop or webbing color match to existing seat belt,upholstery or carpet is not be guaranteed.
Click Here to view 3, 4 and 7 panel webbing colors or to order webbing samples.
Description Item Number
Buckle Side With Starburst Logo Buckle With Black Webbing.No Sleeve. W8138B
Buckle Side With GM Logo Reproduction Buckle With Black Webbing.No Sleeve. W8000R-B
Buckle Side With Original GM RCF67 Logo Buckle With Black Webbing.No Sleeve. W8000R-B

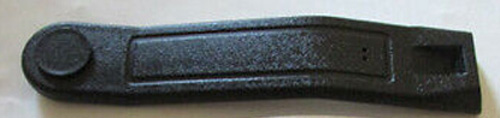

Buckle Webbing Sleeve Only.Specify color. W8172 Series
Lap Belt Retractor.3 Panel Webbing And Color Matched Web Stop.Convertible.Specify Color W8002-3P Series
Lap Belt Retractor.4 Panel Webbing And Color Matched Web Stop.Convertible.Specify Color W8002-4P Series
Lap Belt Retractor.7 Panel Webbing And Color Matched Web Stop.Convertible.Specify Color W8002 Series
Lap Belt Retractor Web Stop Only.1974-75 Convertible. Specify color. W8170 Series
Mounting Kit.1974-75 Convertible Lap Belt Car Set.Replacement. 8239
Mounting Kit.1974-77 Convertible Lap Belt With Harness Car Set.Replacement. 8223
Mounting Kit.1974-77 Coupe.Replacement. 8240
Retractor Only.Lap Belt Bare.Replacement.ALR Automatic Locking. CR3
Retractor Only.Shoulber Harness Bare.Replacement.ELR Web Sensitive. CR2
Retrofit Mounting Kit.1974-75 Convertible. 401K
Retrofit Mounting Kit.1974-75 Convertible With Shoulder Harness. 307K
Retrofit Mounting Kit.1974-77 Coupe. 308K
Shoulder Harness.3 Panel Webbing.Convertible.Web Stop Not Included.Specify Color W8128-3P Series
Shoulder Harness.4 Panel Webbing.Convertible.Web Stop Not Included.Specify Color W8128-4P Series
Shoulder Harness.7 Panel Webbing.Convertible.Web Stop Not Included.Specify Color W8219 Series
Shoulder Harness Web Stop Only.1974-75 Convertible.Specify color. W8170 Series
Shoulder Harness Mounting Bolt.1974-75 Convertible.Replacement. 8189
Underbody Reinforcing Plate With Weld Nut.Replacement. RB1-1
Underbody Reinforcing Plate Bolt And Lock Washer.Replacement MH8-2
Liability Disclaimer:The Andover Companies, and its subsidiaries assumes no responsibility for any damage due to the installation, either proper or improper, or for any damage or bodily injury arising from the use of any product. It is understood that the purchaser, installer and/or end user is responsible for the determination that the product purchased is suitable for its intended use and agrees to indemnify and hold The Andover Companies,Inc and its subsidiaries, harmless for any claim, action or demand arising from the installation and/or use of any product. There are no guarantees or warrantees on any product, implied or expressed, of fitness for a particular use with any such warrantees being specifically and expressly disclaimed. In the event any of the above limitations are held not enforceable our liability shall not exceed an amount equal to the amount paid to us for the product. Receipt of product or products confirm acceptance of disclaimer and liability transfer to purchaser, installer and/or end user.
All information detailed within this document is based on information believed to be accurate but accuracy is not guaranteed.All pictures,diagrams and item descriptions are protected property of The Andover Companies,Inc and are not to be duplicated in any manner without written permission.
